GJX(F)H Optical Cable FRP/KFRP/steel wireFRP 1-4F

Name: GJXFH Optical Cable FRPKFRPsteel wireFRP 14F
Brand: DF/OEM/Nuetral
Price: 1 USD

Brand Name : DF/OEM/Nuetral

Model Number : TK-PC-48F-SC-OS2-50M

Certification : CE/ROHS/REACH/ISO9001/ISO14001

Place of Origin : China, Shenzhen

MOQ : negotiable

Price : negotiable denpend on QTY

Payment Terms : Western Union, T/T, MoneyGram/Paypal

Supply Ability : 1000PCS/Day

Delivery Time : 5-9 working days depends on QTY

Packaging Details : Blister box+Carton

Product Name : GJX(F)H Optical Cable

Fiber count : GJXH-1~4; GJXFH-1~4

Optical fiber Diameter(±1µm) : 125μm

Optical fiber Coating diameter(±5µm) : 250μm

Core reinforce : FRP/KFRP/steel wireFRP

Strength member Diameter(mm) : 0.5mm

Supplementar : LSZH

Sheath Sheath material : MDPE/HDPE or LSZH

Color : Black

Outside diameter(mm) : 2.0*3.0

Cable weight (kg/km) : 10.5; 9

Operation Temperature : -20℃~70℃

Fiber Brand : Corning, YOFC, OFS, Draka

Contact Now

GJX(F)H Optical Cable FRP/KFRP/steel wireFRP 1-4F

FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit id positioned in the center. Two parallel strength member are placed at the two sides, then the cable is completed with black LSZH sheath.

Product Applications

Adopted to indoor distribution;
Suitable for aerial, pipeline laying method;
As FTTH cable,for indoor horizontal and vertical cabling.
Meet various requirements of market and clients

Product Features

Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
Simple structure, light weight and high practicability;
Low smoke, zero halogen and flame retardant sheath.
Meet various requirements of market and clients

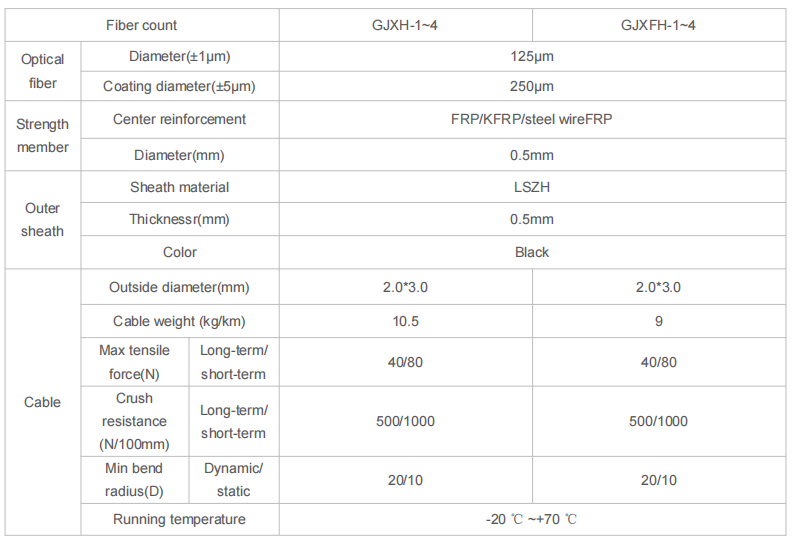

Optical Parameter and Properties

GJX(F)H Optical Cable FRP/KFRP/steel wireFRP 1-4F

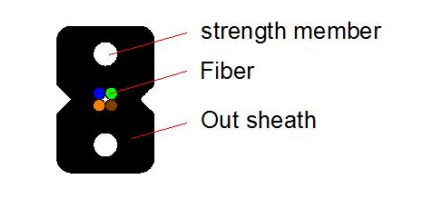

Product Structure

Other Requirements

Length of production optical cable: 2000M
Optical cable outer sheath printing specifications, such as:

OPTICAL FIBER CABLE GJXFH 3.0X2.0 LSZH MM/YY 00000M

Why choose TAKFLY?

Professional manufacturer:

With more than 25 years manufacturing experience in Fiber optic products
More than 450 assembly workers with 3 years experienced
More than 10 R&D Engineers
16 Sets Germany imported Injection Machine and 16 Production Lines
More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
OEM Brand is acceptable
Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.

Quality Control

Spot check the raw material incoming inspection before production
Fully check after every individual process finished
Fully check production half done
Fully check the finished products before packing
Spot check before shipping

Delivery

Samples: 1-3 working days
Mass Production Order: 3-7 working days
Packaging: Plastic Bag, Carton and Pallet are available according to your request

If you're interested in our products or have any doubt, feel free to contact me at any time! GJX(F)H Optical Cable FRP/KFRP/steel wireFRP 1-4F
