Simplex Armored Optical Cable 2000M LSZH/PVC/PU

Brand Name : DF/OEM/Nuetral

Model Number : TK-PC-48F-SC-OS2-50M

Certification : CE/ROHS/REACH/ISO9001/ISO14001

Place of Origin : China, Shenzhen

MOQ : negotiable

Price : negotiable denpend on QTY

Payment Terms : Western Union, T/T, MoneyGram/Paypal

Supply Ability : 1000PCS/Day

Delivery Time : 5-9 working days depends on QTY

Packaging Details : Blister box+Carton

Product Name : Simplex Armored Optical Cable

Fiber count : 1

Core reinforce : Aramid yarn

Material : Stainless steel

Jacket Material : LSZH/PVC

Color : Blue for single mode cable, Grey for multi mode cable; Or other colors available upon request

Sheath material : PVC/LSZH/PU

Outside diameter (mm) : 2-3.0mm

Diameter(±1µm) : 125μm

Coating diameter(±5µm) : 250μm

Operation Temperature : -20℃~70℃

Length : 2000M or Customized

Fiber Brand : Corning, YOFC, OFS, Draka

Cable weight (kg/km) : 15-19

Contact Now

Simplex Armored Optical Cable 2000M LSZH/PVC/PU

Simplex Armored Optical Cable 2000M LSZH/PVC/PU

Simplex armored optical cable uses a single Φ600μm or Φ900μm tightly sheathed optical fiber as optical transmission medium, covered with a layer of spiral steel armor, and a layer of aramid yarn as stress strengthening unit. The outermost layer is extruded with a layer of polyvinyl chloride PVC or PU polyurethane,LSZH (low-smoke, halogen-free, flame retardant) jacket.
Product Applications
  • Optical fiber active connection jumper or tail fiber
  • Optical connections in optical communication equipment rooms and optical distribution frames;
  • Interconnection of instruments and communication equipment
Product Features
  • Good mechanical and environmental characteristics;
  • Flame retardant characteristics meets the requirements of relevant standards;
  • The mechanical characteristics meet the requirements of relevant standards;
  • Soft, flexible, easy to splice, and with big capacity data transmission;
  • Meet various requirements of market and clients
Optical Parameter and Properties
Optical fiber type Test wavelength Decay Full injection bandwidth (MHZ.km) Effective modal bandwidth (MHZ.km) Minimum bending radius(mm)
G652D 1310/1550nm 0.36/0.22 0.5/0.4 ... 16
G657A1 1310/1550nm 0.36/0.22 0.5/0.4 ... 10
G657A2 1310/1550nm 0.36/0.22 0.5/0.4 ... 7.5
62.5/125 850/1300nm 3.0/1.0 3.5/1.5 ≥200/500 30
50/125 850/1300nm 3.0/1.0 3.5/1.5 ≥500/500 30
OM3 850/1300nm 3.0/1.0 3.5/1.5 ≥1500/500 7.5
OM4 850/1300nm 3.0/1.0 3.5/1.5 ≥3500/500 7.5
OM5 850/953nm/1300nm 3.0/.../1.0 3.5/.../1.5 ≥3500/1850/500 7.5

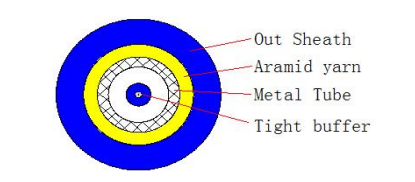

Product Structure

Simplex Armored Optical Cable 2000M LSZH/PVC/PU

Other Requirements

Length of production optical cable:2000M
Optical cable outer sheath printing specifications, such as:
ARMORED OPTICAL FIBER CABLE 3.0 SM G652D-9/125um - LSZH - MM/YY 00000M
Why choose TAKFLY?
Professional manufacturer:
  • With more than 25 years manufacturing experience in Fiber optic products
  • More than 450 assembly workers with 3 years experienced
  • More than 10 R&D Engineers
  • 16 Sets Germany imported Injection Machine and 16 Production Lines
  • More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
  • OEM Brand is acceptable
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control:
  • Spot check the raw material incoming inspection before production
  • Fully check after every individual process finished
  • Fully check production half done
  • Fully check the finished products before packing
  • Spot check before shipping
Delivery:
  • Samples: 1-3 working days
  • Mass Production Order: 3-7 working days
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request

If you're interested in our products or have any doubt, feel free to contact me at any time!

Simplex Armored Optical Cable 2000M LSZH/PVC/PU
