FC Simplex Fiber Optic Pigtail UPC and APC PVC/LSZH

Brand Name : DF/OEM/Nuetral

Model Number : TK-PC-48F-SC-OS2-50M

Certification : CE/ROHS/REACH/ISO9001/ISO14001

Place of Origin : China, Shenzhen

MOQ : negotiable

Price : negotiable denpend on QTY

Payment Terms : Western Union, T/T, MoneyGram/Paypal

Supply Ability : 1000PCS/Day

Delivery Time : 5-9 working days depends on QTY

Packaging Details : Blister box+Carton

Product Name : FC Simplex Fiber Optic Pigtail

Intertion Loss : ≤0.3dB

Return Loss : UPC SM≥50dB, APC SM≥ 60 dB, PC MM ≥ 35 dB

Fiber Type : SM (G652、G655、G657); MM (OM1-OM5)

Cable Diameter : 2.0、3.0 or customized (Simplex/duplex)

Connector Type : SC/UPC

Jacket Material : LSZH/PVC

Color : Yellow or Customized

Wavelength : 1310nm, 1550nm

Length : 10M , 20M or Customized

Operation Temperature : -20℃~70℃

Fiber Diameter : 9/125

Fiber Brand : Corning, YOFC, OFS, Draka

Contact Now

FC Simplex Fiber Optic Pigtail UPC and APC PVC/LSZH

Description

Optic pigtail, only one end with connector, but the other end is the fiber core of optical cable, which is used for the connection between optical termination box and equipment, one end of the pigtail is spliced with the fiber core of fiber optic cable, and the other end could use LC,SC,FC,ST connector to connect with optical media converter or optical transceivers, etc... , finally realize the optical data transmission.

Fiber Optic Pigtail Applications

  • CATV
  • Telecommunication networks
  • Active device termination
  • Local area networks (LANS)
  • Data processing networks
  • Test equipment
  • Wide area networks (WANS)
Fiber Optic Pigtail Features
  • Low insertion loss and High reflection loss
  • Good exchange ability
  • Good durability
  • High temperature stability
  • Standard: Telcordia GR-326-CORE
Fiber Optic PigtailSpecifications
End face type UPC and APC
Fiber type SM(G652 / G655 / G657)；MM(OM1-OM5)
Cable Diameter
0.9,2.0,3.0 or customized (Simplex/duplex)
Insertion loss ≤ 0.3 dB
Return loss UPC SM≥50dB, APC SM≥ 60 dB, PC MM ≥ 35 dB
Repeatability ≤ 0.1
Durability ≤ 0.2dB
Interchangeability ≤ 0.2dB
Tensile strength 0.9mm cable>5N 2.0/3.0mm cable>70N
Operating Temperature -20℃~70℃
Storage Temperature -40℃~80℃
Outer Sheath Material PVC/LSZH or Customized
Bending radius(Static/Dynamic) 10D/20D
Length Customized

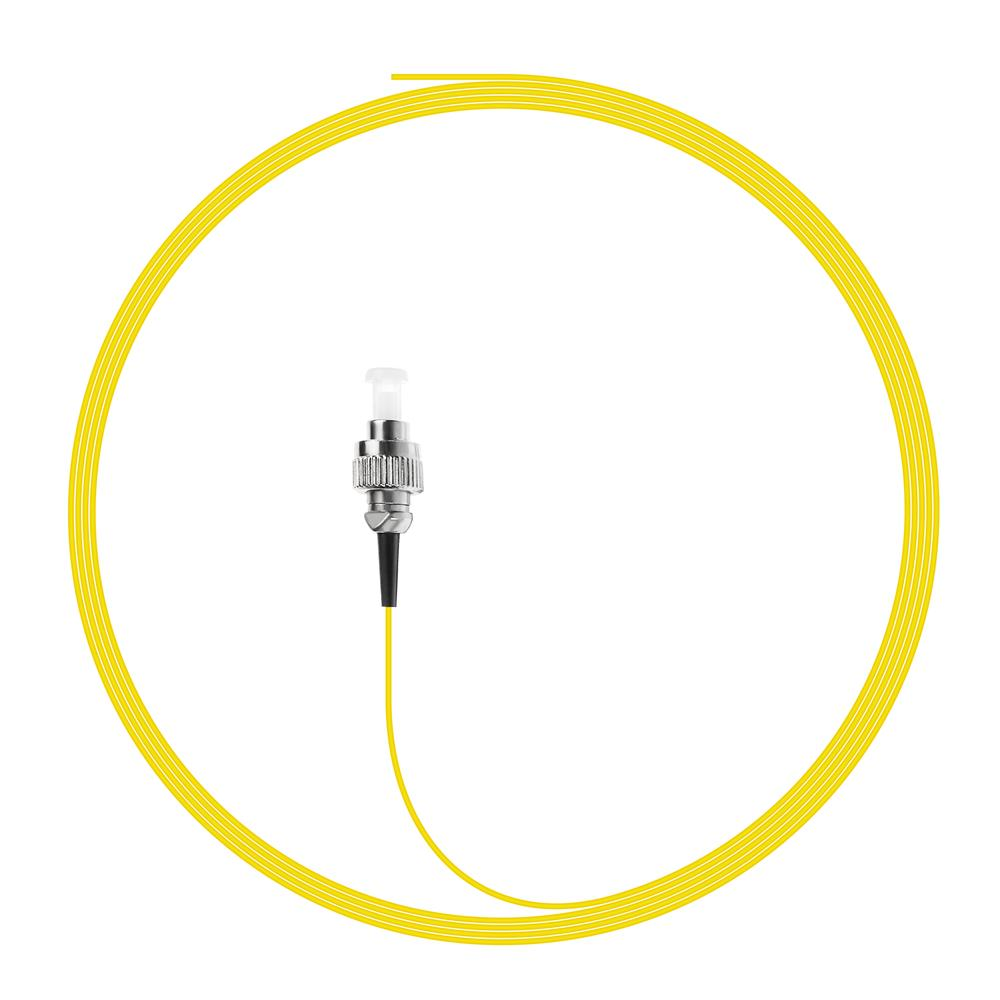

Pigtail Picture
FC Simplex Fiber Optic Pigtail UPC and APC PVC/LSZH
Why choose TAKFLY
Professional manufacturer:
  • With more than 25 years manufacturing experience in Fiber optic products
  • More than 450 assembly workers with 3 years experienced
  • More than 10 R&D Engineers
  • 16 Sets Germany imported Injection Machine and 16 Production Lines
  • More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
  • OEM Brand is acceptable
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control:
  • Spot check the raw material incoming inspection before production
  • Fully check after every individual process finished
  • Fully check production half done
  • Fully check the finished products before packing
  • Spot check before shipping
Delivery:
  • Samples: 1-3 working days
  • Mass Production Order: 3-7 working days
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
FC Simplex Fiber Optic Pigtail UPC and APC PVC/LSZH
UPC and APC
