Fiber Optic Patchcord OEM LC/Sc/FC/St Singlemode/Multimode Upc/APC Simplex/Duplex Jumper

Brand Name : OEM

Model Number : LC/SC/ST/FC

Certification : ISO, CE RoHS

Place of Origin : China

MOQ : 1

Price : USD0.5-18/pc

Payment Terms : T/T, Western Union

Supply Ability : 100000pcs per month

Delivery Time : 5-8 working days

Packaging Details : Plastic bag + Carton

Fiber Core : Single Fiber/Dual Fiber...

Fiber Type : Singlemode/Multimode

Connector : LC/SC/FC/ST...

Operating Temperature : -20 C ~ +70 C

Contact Now

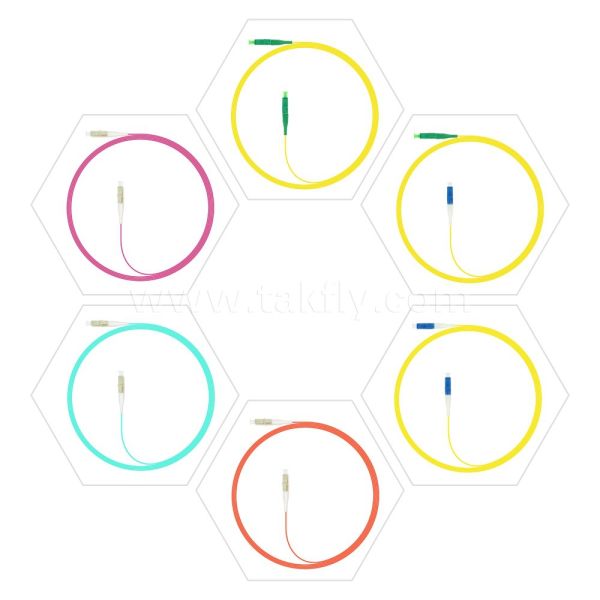

Fiber Optic Patchcord OEM LC/SC/FC/ST Singlemode/Multimode UPC/APC Simplex/Duplex Jumper

Product Overview

Fiber optic patch cords are cables with both ends terminated with fiber optic connectors, enabling connections between optical networking equipment, equipment-to-equipment links, and equipment-to-patch cord interfaces. Their easy operation and convenience make them indispensable passive components for optical networking infrastructure.

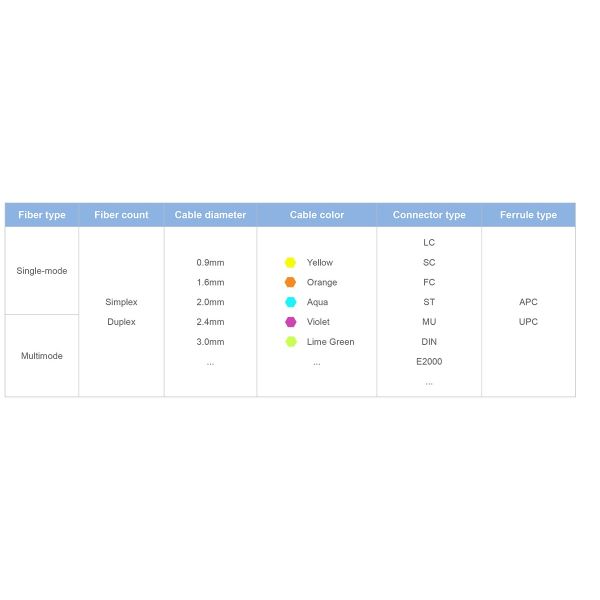

TAKFLY provides a comprehensive range of fiber optic patch cords with optional transmission modes, cable types, and connector configurations, including custom solutions.

Applications

TAKFLY fiber patch cords feature stable transmission performance and high reliability, making them widely applicable in optical networking environments including data centers, FTTX deployments, and LAN installations.

Technical Parameters

Parameter	Specification
End Face Type	UPC and APC
Fiber Type	SM (G652, G655, G657); MM (OM1-OM5)
Cable Diameter	0.9, 2.0, 3.0 mm or customized (Simplex/Duplex)
Insertion Loss	≤ 0.3dB
Return Loss	UPC SM ≥50dB, APC SM ≥60dB, UPC MM ≥35dB
Repeatability	≤ 0.1
Durability	≤ 0.2dB
Interchangeability	≤ 0.2dB
Tensile Strength	0.9mm > 5N, 2.0mm/3.0mm > 70N
Operating Temperature	-20℃ to 70℃
Storage Temperature	-40℃ to 80℃
Outer Sheath Material	PVC, LSZH, TPU
Bending Radius (Static/Dynamic)	10D/20D
Length	Customized

Key Features

Selected High Quality Ferrule

Fiber optic patch cords feature high-quality ceramic ferrules with professional polishing technology and precise optical endface matching for stable transmission and efficient connectivity.

Fiber Optic Patchcord OEM LC/Sc/FC/St Singlemode/Multimode Upc/APC Simplex/Duplex Jumper

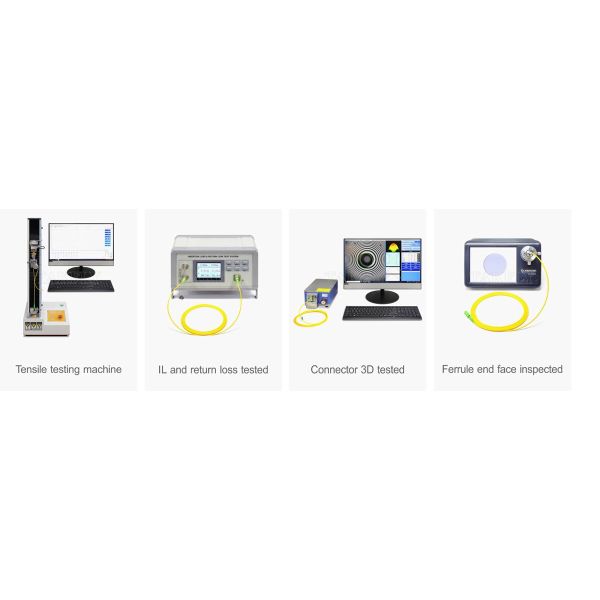

High Quality, 100% Testing

TAKFLY fiber optic patch cords undergo comprehensive 100% testing, ensuring compliance with product standards and meeting customer requirements.

Multiple Types Optional

TAKFLY offers a complete range of LC, SC, FC, ST, and other fiber optic patch cord types, with customization options available.
